    2014 Hot sale CO2 type laser fabric cutting machine on alibaba

    Ask Lasest Price
    Brand Name : TianJiao
    Model Number : TJ1225
    Certification : CE
    Delivery Time : 7-10 days after advanced payment
    Payment Terms : T/T 50% in advance, balanced before shipping
    Supply Ability : 500sets per month
    • Product Details
    • Company Profile

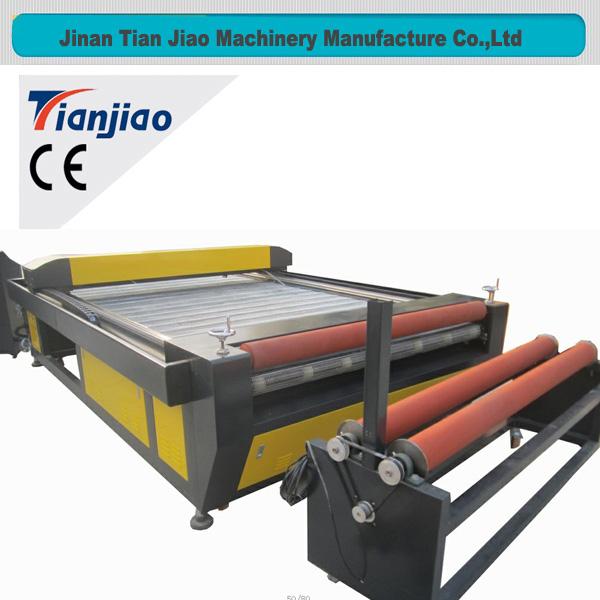

    2014 Hot sale CO2 type laser fabric cutting machine on alibaba

    2014 Hot sale CO2 type laser fabric cutting machine on alibaba

    >> Brife introduce>>

    This model can used for large materials, like colth, leather, wood board, acrylic, paper and other fields to engrave and cut.

    special for the rolls material


    >> Application>>

    This model mainly used for cutting cloth,silk,textile,paper, plastic,leather, rubber, other rolls materials. It can used in the fields of advertising, arts and crafts making, leather processing, textile industry ,package making and so on.

    with auto feeding system, can save working time, advance working efficiency high, avoid material waste.


    >> Parameters >>

    Description

    Parameter

    Working area

    1200mm×2500mm

    Whole machine size

    3000×1600×990cm

    Laser tube power

    60W

    Max. scan precision

    2500dpi

    Min. character

    English 1mm×1mm

    Position precision

    <±0.01mm

    Support figure form

    BMP PLT DST DXF , and AI

    Drive motore

    Stepper

    Working temperature

    545

    Working humidity

    595without condensed water

    Cooling mode

    Water cooling

    Control system

    DSP control system

    Software

    Coreldraw AutoCAD Photoshop


    >> Machine features >>


    1. CO2 Glass sealed laser tube
    China famous brand (Reci, EFR, Weiju), good beam mode stability, service time over 1500~8000 working hours.

    2. Laser Power
    40W~180W, good quality and stable output to extend the laser tube service time.

    3. Singapore imported lens and mirrors
    High transmittance, good focusing, reflecting effect.

    4. DSP control system, Leetro Controller
    Leetro USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.

    5. High accuracy stepper motors and drivers. Belt transmission

    6. Aluminium blade table

    7. Taiwan Linear guide rails

    8. Lasercut 5.3 software, user’s manual

    9. Tool box

    >> Equipment coming together with machine >>

    1. Industrial Cooling System
    Constant water temperature ensures laser tube a longer service time and high stability

    2. Exhaust Fan
    Exhaust fan removes dust and smoke to protect the optical parts and the users.

    3.Electromagneticair pump
    The air blowing protects the lens from smoke and dust pollution. Also it protects the material being processed from fire or burned.

    >> Options >>

    1. Red dot
    The laser is invisible. Red dot shows the position of the laser on the material. It’s more convenient for location.

    2. Honeycomb or blade table optional
    Aluminum blade table is for processing acrylic, wood and other hard materials;
    Honeycomb table is for processing cloth, leather and other soft materials.

    3. Up/down Z-axis
    You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.

    4. Auto focusing
    Auto focusing automatically adjust the focusing distance.

    5. Rotary
    Rotary is used when processing cylindrical objects like bottles, cups, sticks, etc.

    >> Warranty >>

    1. One year for the machine, except for consumables.

    2. Laser tube warranty:
    40W: 3 months
    60W: 3 months
    80W: 6 months;
    100W, 150W, 180W: 8 months;

    3.Lens and mirrors are not within warranty scope.

    >> Applicable Materials >>

    Materials can be engraved:
    acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.

    Materials can be cut:
    acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.


    >> Sample>>


    Quality 2014 Hot sale CO2 type laser fabric cutting machine on alibaba for sale
