PP/PC/PET plastic cutting machine

1.PP/PC/PET plastic cutting machine

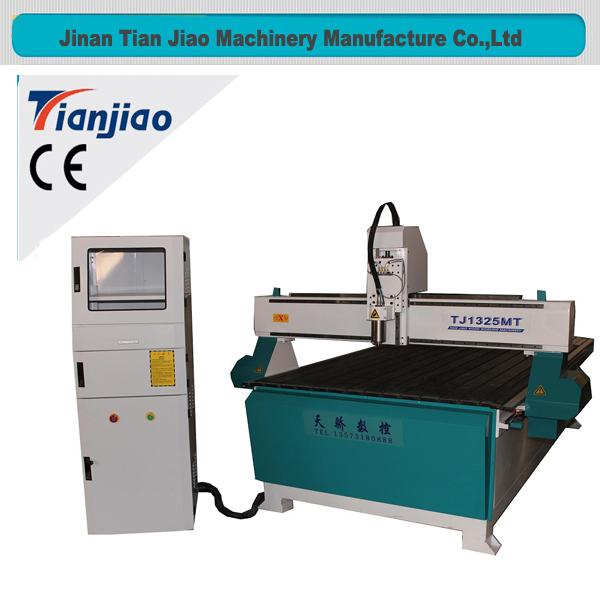

Photos：

2. PVC/PP/PS/PET sheet Cutting machine

Application

Woodworking Applications:

waving board, cabinet door, solid wood door, craft wood door, no-paint door, folding screen, craft window, shoe polisher, game machine cabinet, Ma-jiang Table, computer table and panel type furniture.

Advertising Applications:

making advertising products made from Brand Board, Acrylic cutting, mould and some other materials

processing.

Mould Area:

copper engraving, aluminium and iron engraving, and nonmetallic moulds, like: scagliola, sandstone,

plastic board, PVC pipe, wood sheet etc.

Other Applications:

Art and craft fields, embossment, photo engraving and so on.

3. PVC/PP/PS/PET sheet Cutting machine

configuration

Vertical support square pipeweldingstructure with gantry,

4.5KW (imported bearing) China water cooling spindle,

Type3 Software/UCANCAM Software,

u flash disk DSP control system,

stepper motor118, Leadshine driver1182,

imported Taiwan Hinwin square orbit (φ20) for three axis,

gear-wheel for X and Y axis, ballscrew for Z axis,

vacuum table, water cooled vacuum pump and dust extraction system with 6 zones separately

control

dust extraction hood, oiling system, 10 cutters (φ6, φ12.7), 2 collets

Optional:Dust collector

NC-Studio control system (original type or copy type)

Italy HSD air cooling spindle or China made air cooling spindle

air vacuum pump

Auto tool change

4. PVC/PP/PS/PET sheet Cutting machine

features

4.5KW China water cooling spindle has high precision , long life time , steady working , easy

to start up .

Three axis all adopt imported Taiwan HINWIN square orbit, double slippers, imported

ballcsrew and bearings, which make the machine work steadily, has heavy loading, good

working stability, high precision, and long life-span of the whole machine.

DSP control system with USB interface, working without connecting with computer during

working and easy to control.

Good software compatibility, it could compatible with many softwares, like: Type3/Artcam/

Castmate/Ucancam/CAD/CAM, etc.

Adopt high speed stepper motor and drivers, two motors for Y axis, the maximum speed is

35m/min.

Oiling system is easy to operate by one key press.

the separate control system makes the machine can be operated easily.

Adopt top rank international vacuum absorb table surface, it is made from electric wood

board with high absorb, which can absorb different materials, this material with big density

(1.3-1.45g/cm), heat resisting, it can resist high temperature (115°C).

This model machine has high speed, high efficiency, the maximum speed can reach to

above 35meters/min, it can reach to 25 meters/min when processing wave board, it can

match 4-5 common type machines.

5. PVC/PP/PS/PET sheet Cutting machine

parameter

6. PVC/PP/PS/PET sheet Cutting machine

machine details
