High quality wood cnc router

1.photos:

2.Features

1.The max speed is up to 25 meters/min, engraving speed is 20 meters/min

2. Adopting easy coperated DSP control system, it is convenient to operate.

3. Unique intelligent budget principle make the motors offerring the high speed, so it could make

the straight and smooth curves.

4.Double motors to drive Y axises

5.High strength steel tube jointing.

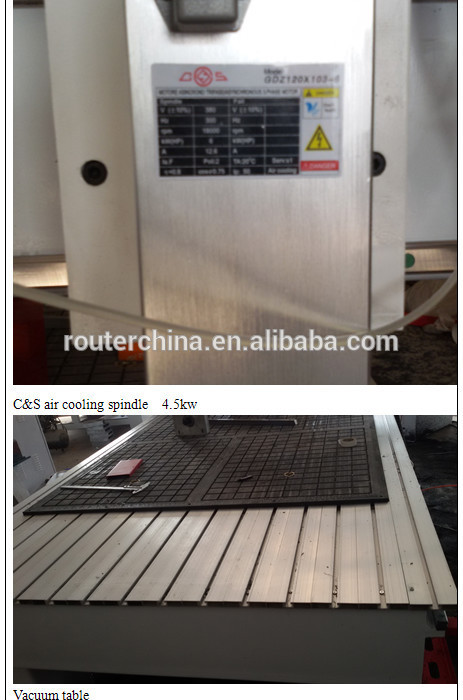

6.The table equipped with 6 divided vacuum zones.

3.Parameters

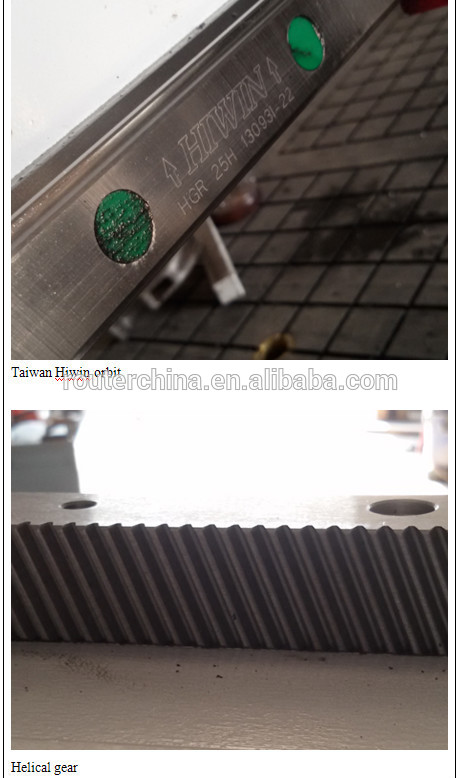

4.Details:

Easy servo motor advantages:

Compared with open loop stepmotor:

Don’t lose step, can accurate positioning

High-speed performance increase about 30%, and improve the equipment working speed;
Motor heat fell about 20%, extending the service life of the motor

Motor vibration decrease obviously, run more smoothly

The variable current control technology, save power consumption;

Compared with AC servo motor:

No needparameter adjustment, more convenientto use;

Zero speed stop stable, high-speed stopsnoshaking;

Position response very quickly, especially suitable for application in short start-stop situation quickly

Larger toque, smaller installation size
cost lower 50%
Besides the above advantages, this driver add alarm output function.

when the driver monitoring motor run in continuous overload, drive automatically

cut off the motor power supply, while the output alarm signal to the PC, until the alarm

signal elimination, the maximum guarantee for the safe, efficient operation of the client machine, the working

efficiency is improved.

Core features:
1,input voltage 18-75VDC,peak output current up to8A

2,motor standard with 1000 wires line encoder, support vector close loop control,from the fundamental solves

the problem of the traditional stepper motor lose step

3.can drive 57/86 series easy servo motor, speed reach 3000rpm.

4.Adopt advanced current control technology,can be very good to improve motor acceleration and deceleration,

prolong the service life of machinery.

5,the 6switch setting, the maximum microstep can reach 40000, can be set

The parameters of the motor, the positive and negative direction;

6,Driver configurationoverload signal output, improve system operation quality;

7, support RS232 communication protocol, simple and practical ProTuner debugging software, complete set

parameters, on-line monitoring and other functions;
